Introduction
【Recently, the electric bicycle with its convenient, environmentally friendly and low use cost and many other advantages to win the majority of consumer recognition, and at present the electric car industry, using non electric bicycle motor control has more than 95% of the market, and for the electric bicycle, the control performance is a key part of vehicle performance.】
【The enhanced electric bicycle controller of the company, with its efficient, reliable, low cost advantages, will greatly enhance the market competitiveness of electric vehicle controller. Using MCHP8 microcontroller, a discrete power tube driving scheme, the various functions of protection, control mode are optional, improve and enhance the vehicle performance, meet the control requirements.】
The main parameters
◆【Rated voltage: DC 36V/ 48V;】
◆【Rated power: 150W ~ 800W】
◆【Undervoltage protection: DC 31.5V ± 0.5V / DC 42V + 0.5V】
◆【The limiting current: limiting values for the 12A~30A (+ 0.5A)】
◆【Static power consumption: 3W;】

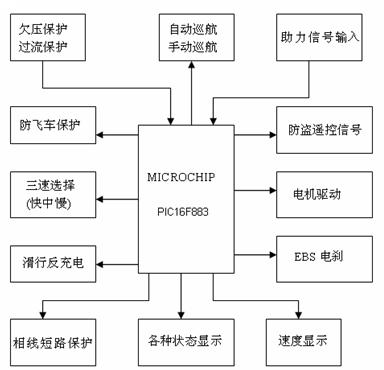

◆（The system block diagram）
◆【Function characteristics】
◆【The braking power / flexible EABS electromagnetic brake】
◆【1:1 power control】
◆【Runaway protection】
◆【Intelligent motor lock】
◆【Blocking protection】
◆【Over current protection】
◆【Over current protection】
◆【Over current protection】
◆【Automatic / manual Cruise】
◆【Anti charging function】
◆【Speed limit control】
◆【Output display】
◆【Stream synchronization.】
◆【Motor phase short circuit protection】
【Due to limited space, if you wish to design the program to do a more detailed understanding, can directly send mail to Tech@xinmandz.com mail request, must add written company, contact, telephone, our staff will be one one reply.】
