Internet radio program based on Microchip single chip microcomputer
Low cost network radio program
Function description
○The 8 bit Microchip microcontroller PIC18F67J60 as the main control, built-in Ethernet controller and the physical layer
In support of OLED LCM (128 * 64) display unit]
○[○ external audio codec VS1011
-MPEG 1.0 & 2.0 audio layer III (CBR, VBR, ABR);
-Layers I & II optional;
-Format, you can change the decoder flexible support more audio format
○Low cost, simple design
Schematic diagram:

Wireless WiFi network radio program
Function description
○The 16 bit Microchip microcontroller PIC24FJ128GA006 as the main control
○Support cable and WiFi connected to the Internet
○Support OLED LCM (128 * 64) display unit
○External audio codec VS1053
–MPEG 1 & 2 audio layer III (CBR+VBR+ABR), layers I & II optional
–MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS)
–WMA4.0/4.1/7/8/9 all profiles (5-384 kbps)
–WAV (PCM + IMA ADPCM)
Format, you can change the decoder flexible support more audio format
○Low cost, simple design

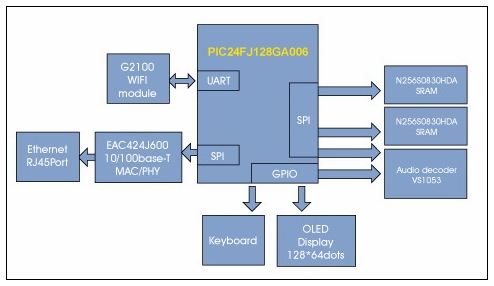

Schematic diagram
