Introduction

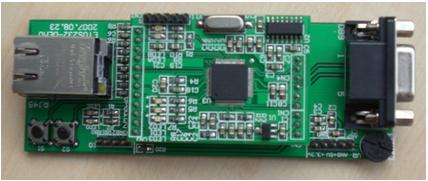

No external other equipment required for the demo board, connected to the network through the Ethernet interface RJ45, serial port to connect to the user equipment, can make the remote PC, can control the user through the network equipment by the adoption of Microchip for embedded system Internet application access developed 8 integrated Ethernet controller IC, and the system the TCP/IP protocol stack based on embedded chip, Microchip release, can make your device to UDP, TCP Server, TCP Client mode access to the network.
Function characteristics.
◆Single chip to complete the protocol conversion function, greatly reduce the system cost and complexity.
The size of only half the size of a credit card, power consumption less than 1 watts, more convenient to integrate it with their own equipment
The internal integrated ETORS232 TCP/IP protocol stack, which can make you no longer spend a lot of energy in the TCP/IP protocol programming, and can easily be your product to access ethernet.
10M Ethernet interface, the maximum baud rate is 115200 bps.
Support for dynamic (DHCP) or static IP address acquisition.
Supports three different network connection mode: TCP SERVER model, TCP CLIENT model and UDP model.
Use the windows application netConfigure to view and configure network parameters
The scope of application
Industry automation (measurement, transmission equipment)
Health care equipment (life index monitor)
Building automation / building security system (card reader system, fire safety)
Information appliance system (network water heater, network refrigerator)
Sales network terminal system (POS)


Due to limited space, if you wish to design the program to do a more detailed understanding, can directly send mail to Tech@xinmandz.com mail request, must add written company, contact, telephone, our staff will be one one recovery).
